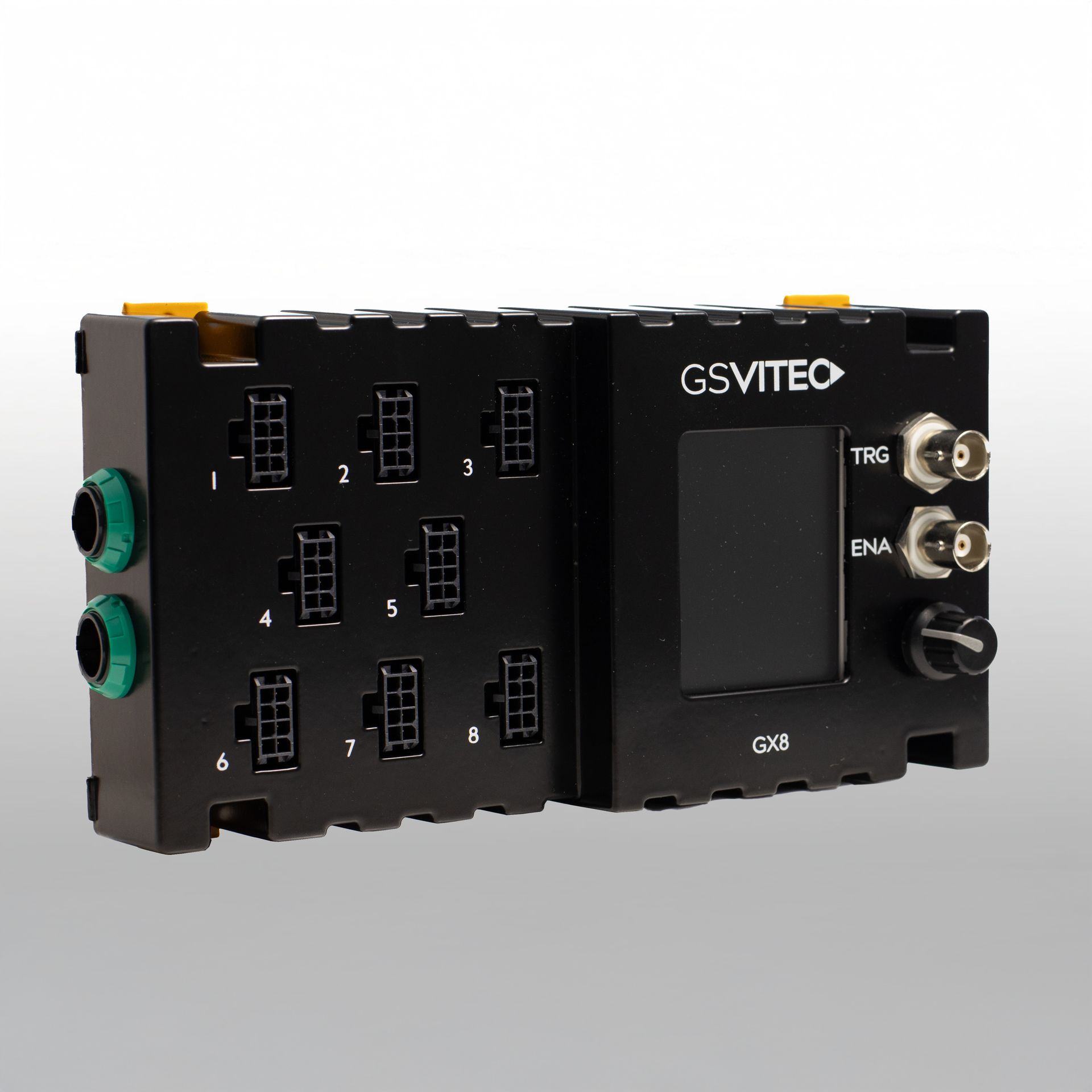

MULTILED GX8MAX Key features
Power Supply
- 100 G LED Solution
- Exchangeable battery pack
Operating mode
• See Datasheet
Specs
• 8 channels
• Field changeable opening angle
Housing variants
• LEMA 2B Version available
Technical features
- Mix freely: CG8MAX L1 (field exchangeable lens system), CG8MAX L2 (no lenses), CG8MAX L3 (triple micro-head)
- CG8MAX contol unit supplies power for 1 to 8 „CG8MAX L1“, „CG8MAX L2“ or „CG8MAX L3“ lamp heads.
- CG8MAX battery pack attached to CG8MAX control unit (exchangeable).
- Charging input in CG8MAX.
- BNC TTL input:
• first edge triggers predefined pulse duration up to 50 seconds (e.g. break off cable at experiment start). • or synchronize strobe to camera exposure. - Lamp thermal capacitiy sufficent for 50 seconds of continuous operation at full power, starting at 25°C. Or longer when pulsed.
- Controller battery sufficent for 240 seconds of continuous operation with 8 lamp heads at 100% power. Or more when pulsed.
- LCD display for control and monitoring.
- RS485 interface:
- • Full feature example software for Windows TM included.
- • Easy integration into your own system using command documentation.
- 100G.
