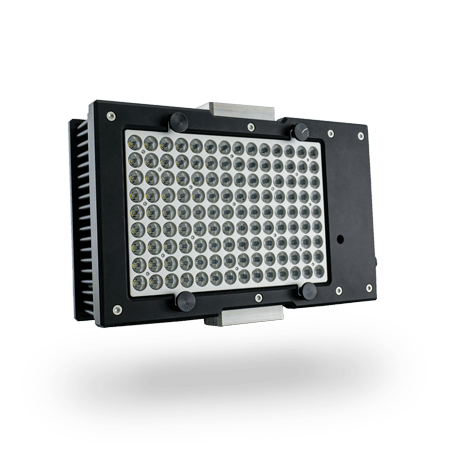

MULTILED LM Key features

Color and Lenses

Changeable Lens

White LED

Color LED

Operating mode

Continuous

Strobe

Overdrive

Specs

2.1 mio Lx max

500W

50.000 lm

Housing variants

High-G

High temp

IP

Vacuum

Technical features

  • Exchangeable lenses
  • 50.000 Lm white
  • Continuous or pulsed operation
  • Down to 200 ns strobe
  • Adjustable intensity for each channel: 0% to 100%
  • All communications and trigger come from the G8 through 1 Ethernet cable
  • Small size
Color Wave Output
Cool-White 50.000 lm
Royal-Blue 450 - 460 nm 172.000 Flux(mW)
Blue 465 - 485 nm 13.000 lm
Green 520 - 535 nm 30.000 lm
Amber 560 - 650 nm 21.400 lm
Red-Orange 610 - 620 nm 26.100 lm
Red 620 - 630 nm 21.000 lm
Photo-Red 650 - 670 nm 124.000 Flux(mW)

Application specific MultiLED housings for order:

Products Order code
High G upgrade gsv-hou-HG100-med
IP 67 upgrade Aluminium housing gsv-hou-ip67-med-al
Particle polluted vacuum upgrade gsv-hou-vacpart-med
300°C+ temperature upgrade AL gsv-hou-300-AL-med
300°C+ temperature upgrade V4A gsv-hou-300-V4A-med

State of the art LED Technology

MultiLED produts cover all applications of high speed cameras and many applications in the machine vision market. Some family members e.g. cover sub microsecond exposure time, monochromatic light or give you enough light to fully close aperture at some microseconds exposure time.
Designed from a decade of experience with thousands of customer projects in mind, MultiLed products off er ultra strong lighting at an affordable price.
Show me all LED Solutions
